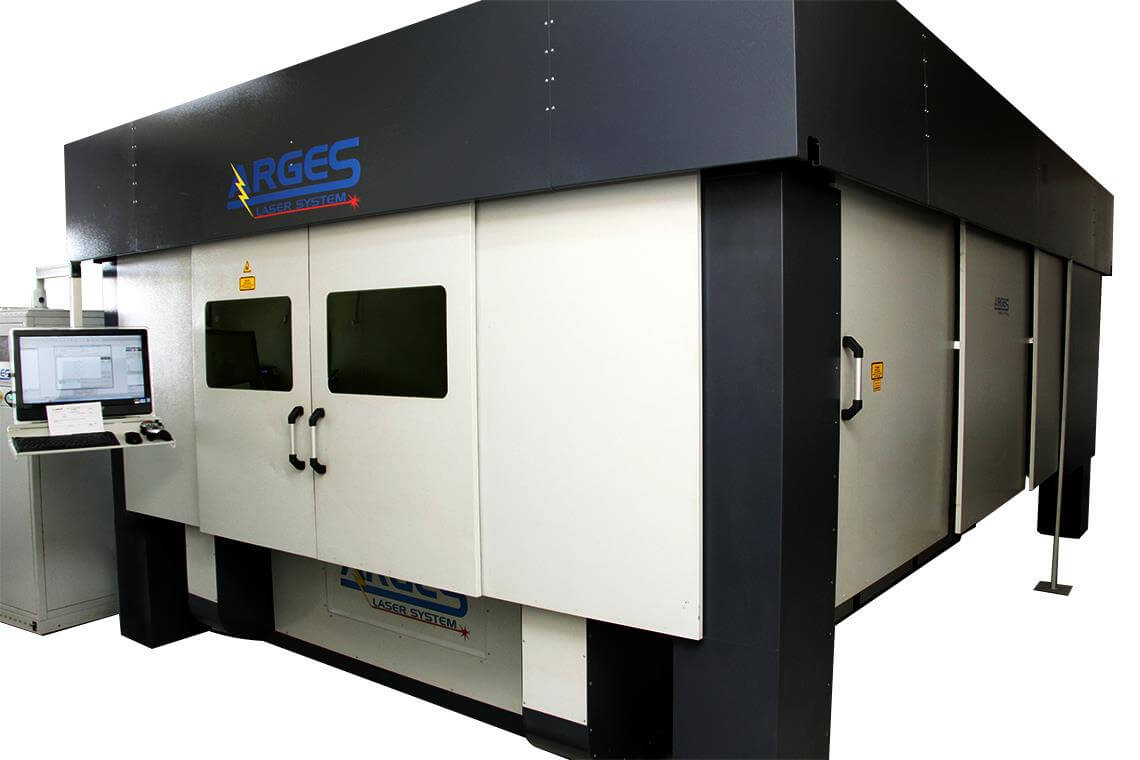

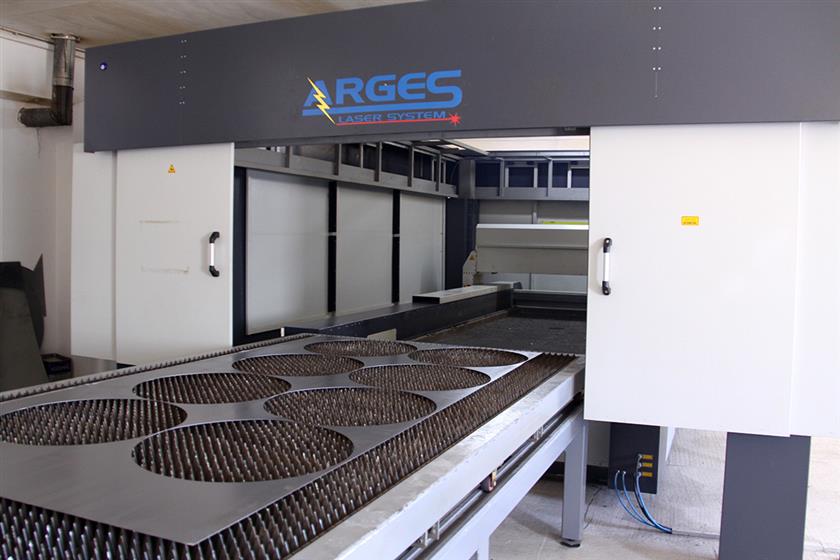

With 1000 Watt powered RD C02 laser, you will work on a work table of 3015x1500 and have a working area up to net 3015x1500 mm.
Cutting, Drawing, Forming, Engraving

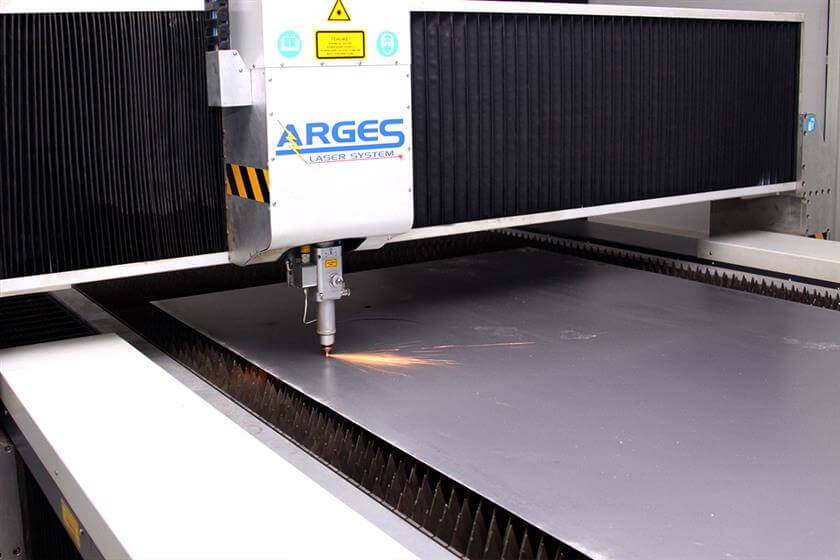

Waves on the surface of the work piece are not a problem anymore thanks to dynamic height control which follows the surface. Powerful engines provide a sharp movement skill to the cutting bridge.
Working guide (display of work area with red laser light) enables a faultless process. The product has an internal system monitor (a control and security system which extends your machine’s lifecycle and inspects working conditions).
| Technology |
Fiber Lazer |
| Laser Safety Norms |
Class IV |
| Nominal Power |
400W-1000 |
| Wave length |
1070 nm |
| Cooling System |
With Water Cooling |
| Focal Length |
80 mm |
| Spot Diameter |
12-15 μm |
| Working distance |
10 μm |
| Cutting Speed |
30 m/dk-500 mm/sn |
| Point to Point Speed |
48 m/dk |
| Acceleration |
200 mm/sn2 |
| Working Area |
1000 x 1000 mm |
| Axis |
2+1 |
| Z Axis Movement |
200 mm |
| Drive / Motion System |
With Boll Screw, With AC Servo Motor |
| Knife shape cutting table |
Triangle Blades |
| Loading Weight |
400 Kg |

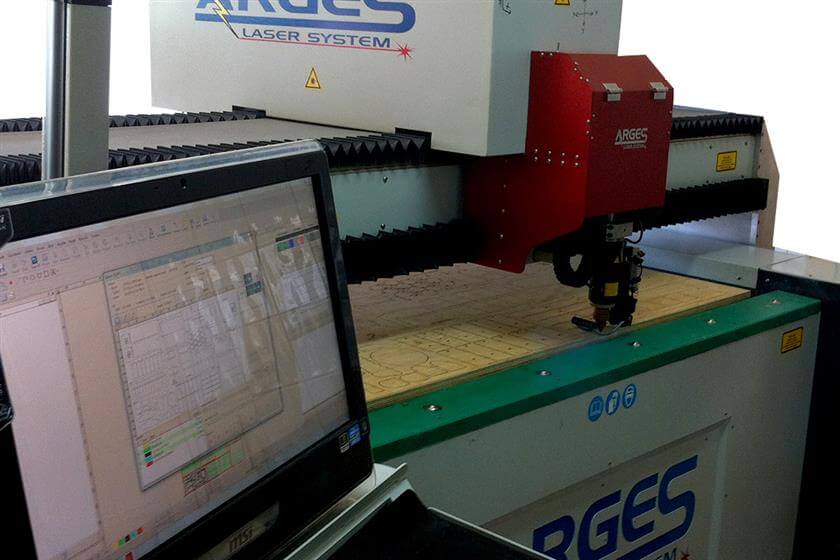

| Control Software |
ARGES ARCON Software |
| Interface |
USB, Network |
| Air Flow |
100 Litre/min |
| Gas Pressure |
4 - 20 bar |
| Other Gases |
Nitrogen, Air,Oksijen |
| Electrical Connection |
380V 3P 50Hz |
| Power Consumption |
6 kw-10,5 kw |
| Noise Level |
<70 db |
| Operating Temperature |
Between 18°C and 28°C and % 50% - % 70% Humidity |
| Weight |
~ 2500 Kg |
| Dimension (Width x Length x Height) |
5200x8200x2500 mm |
INDUSTRIES:
Arms Industry, Medical, Automotives, Electronics, Stone, Marble, Plastics, Glass, Accessories, Furniture, Textile, Shoes, Advertising-Printing, Promotion, Toys, Metal and Various Sub-Industries...
AREAS OF USAGE:
Accessories, Plastics, Iron, Stainless Steel, Leather, Fabrics, Denim, Rubber, Wood, Timber, Plexiglas, PVC, Paper, Glass...
SUPPORTED FORMATS:
DXF, DWG, PLT, HPGL, WMF, DST, DSZ, BMP, PNG, JPG, TIF, PCX, GIF
